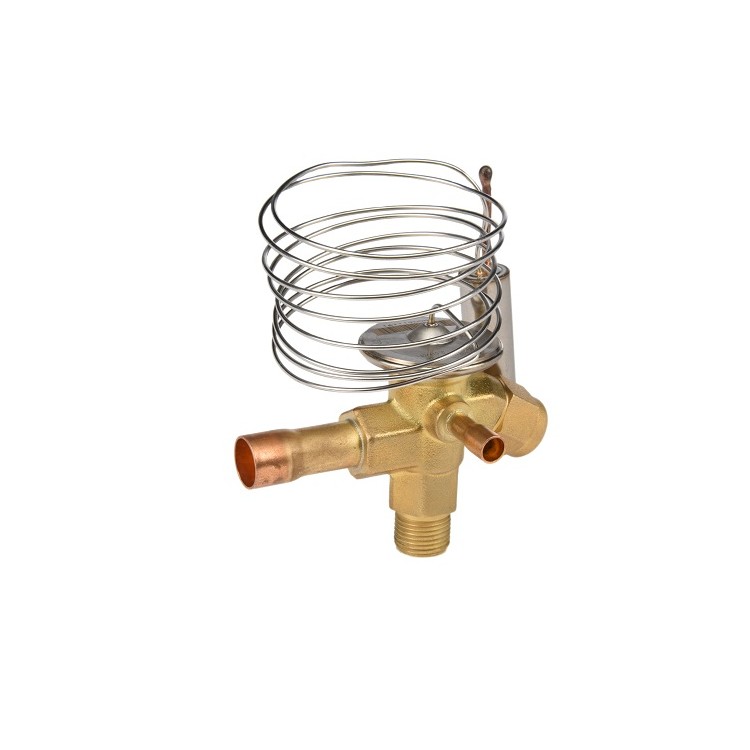

Sanhua expansion valve RFKH03E-4.8-10 R404/507
Sanhua expansion valve RFKH03E-4.8-10 R404/507
Sanhua

Sanhua expansion valve RFKH03E-4.8-10 R404/507

  • Nominal working condition : Condensing temperature 38°C; evaporating temperature +4.4°C; liquid temperature 37°C
  • Nominal capacity based on : static superheat (SS) (5K for models without MOP) and 4K (for models with MOP; Opening superheat (OS) 6K
Orifice model Orifice number Nominal Capacity [KW]
R22 R047C R404A/507 R134a R410 R407A/R407F
RFKH-023-0X 0X 1.0 1.0 0.7 0.69 1.3 1.0
RFKH-023-00 00 1.9 2.1 1.4 1.2 2.5 1.8
RFKH-023-01 01 3.8 4 2.8 2.1 5 3.7
RFKH-023-02 02 5.1 5.4 4 2.7 6.2 5.1
RFKH-023-03 03 8.6 9.2 6.8 4.4 11.2 8.6
RFKH-023-04 04 13.2 13.9 10.8 6.5 17 13.4
RFKH-023-05 05 18.1 18.5 14.1 8.6 21.3 17.6
RFKH-023-06 06 21.3 22.1 16.8 10.3 26.8 21.2
$39.90 No tax
Add to wishlist
Share
Description

RFKH series thermostatic expansion valves are used to adjust mass flow of refrigerant into the evaporator while controlling the refrigerant´s superheat at the outlet of the evaporator. They can be used for various refrigerants under all working conditions. Typical applications are refrigeration systems like freezers, ice makers, dehumidifiers as well as air conditioners and heat pumps at various evaporation temperature ranges.

Specifications
RFKH03E
Connection
1/2"
3/8"
Connection type
Solder
Refrigerant
R404a
R507
Equalizer
present
Maximum Operating Pressure (MOP)
no present
Equalizer connection
1/4
Capillary tube length
1.5m
